Turn the Dial. Keep Spraying.
Ground Application Nozzles
Change Flow Rates or Droplet Sizes with a Turn of the Dial. When drift is a factor, CP’s are the best choice and are available in both high and low volume versions. These nozzles generate an even spectrum of large droplets with few driftable fines through a wide range of pressures. Plus, you don’t need to carry around a bucket of tips!
CP Floater Nozzles, Turbos & Check Valve Combos
CP Floater nozzles work well for small grains, pastures, and hay fields. Designed for conditions where drift is a concern, these are excellent pre-emerge nozzles. All nozzle versions consist of 8 orifice flood nozzle flow rate selector plates. Plus, these nozzles come with a shut-off and three stainless steel deflection tips that can be customized to the customer’s choice.
Each stainless tip covers a specific orifice for proper pattern, i.e., the smallest deflector tip covers the smallest two orifices, the middle tip covers the three middle orifice sizes, and the largest tip will cover the largest three orifice sizes. Change rates quickly without carrying buckets of tips; turn the dial and keep working when conditions on the field change.
How Do They Work?
Once Settings are found, Turn the Dial to set the nozzle.

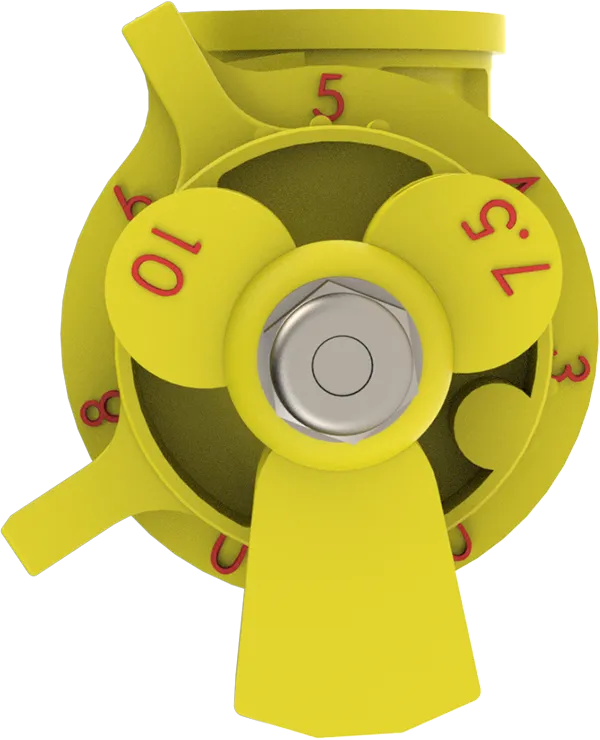

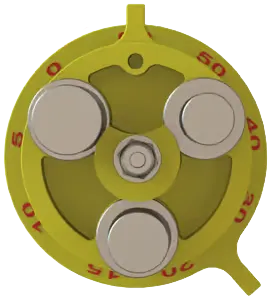

Turn the Deflector Tip Wheel to place the desired tip size. And turn the Selector Handle to place the desired orifice size for flow rate.
Turn the Deflector to place the desired droplet spectrum.
Turn the Selector Handle to place the desired orifice size for flow rate.
Turn the Deflector to place the desired droplet spectrum.
Turn the Selector Handle to place the desired orifice size for flow rate.
Ground Nozzles - Floater Series
Pre-Emerge

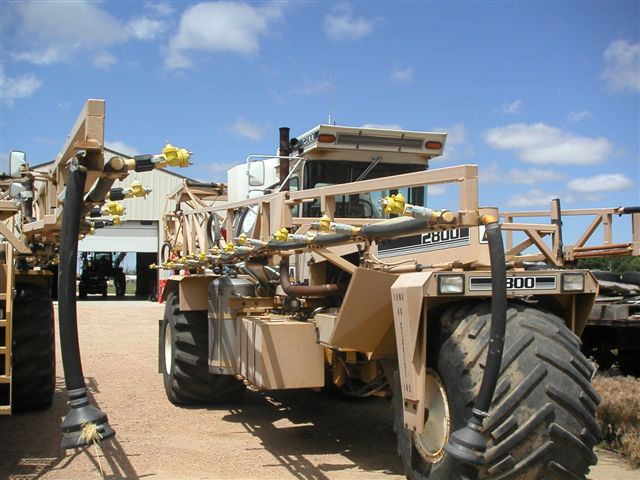

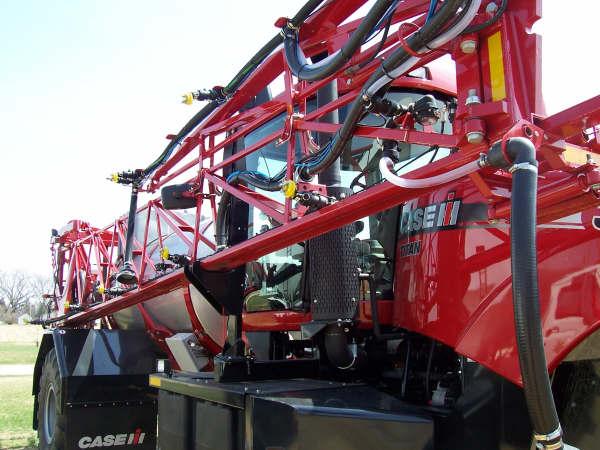

CP Floater Series nozzles are engineered for high-clearance floater application equipment, delivering consistent large droplets at flood nozzle flow rates. Available in low-volume and high-volume configurations, Floater Series nozzles are built from stainless steel and poly materials for long-lasting durability across multiple seasons. The turbo combo design integrates directly with the CP Air Stop check valve system, giving you an all-in-one boom solution that reduces fittings and simplifies setup. Compatible with 30″, 40″, and 60″ spacing.
Ground Nozzles - Sprayer Series
Post-Emerge
CP Sprayer Series nozzles are designed for standard ground sprayer booms, offering precise application across a wide range of pressures and flow rates. Built to handle the demands of row crop and broadcast applications, Sprayer Series nozzles deliver reliable droplet size and coverage consistency season after season. Available in stainless steel and poly construction, these nozzles are engineered for easy field maintenance and long service life.

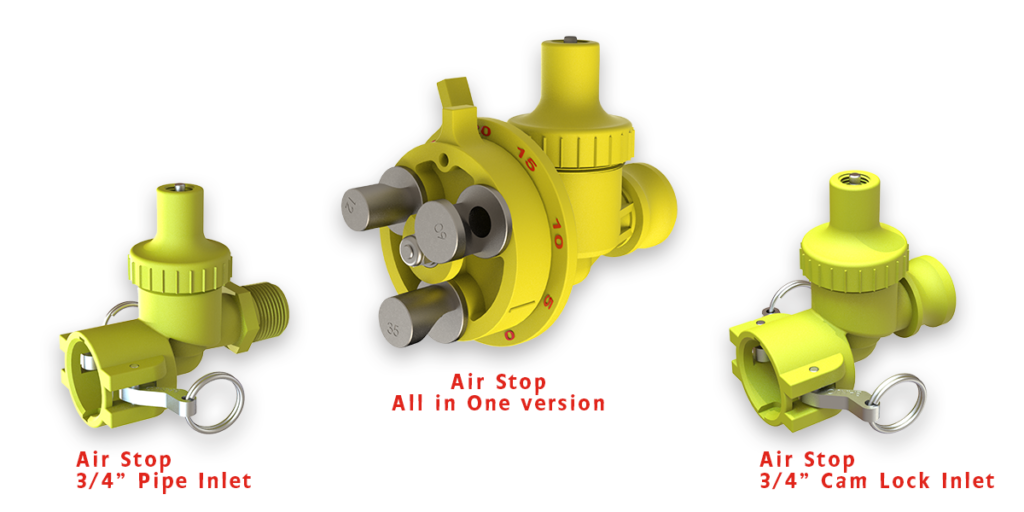

CP Air Stop
BETTER OPTION THAN A PINCH VALVE
- Faster Shut-off
- Operates At A Lower Air Volume
- All-In-One Design
- Easy Maintenance
Ground Nozzle Accessories - Check Valves
Standard, Split Eye, & Air Stop
Need to add text
For Floater Turbos & Sprayers
CP Streamer Accessory Tips
These accessory tips are ideal for fertilizer applications and fit all three volume versions of CP’s Sprayer Turbo Nozzle. The applicator pops them in, replacing any one of the turbo tips. Available in Five Stream and Triple Stream configurations, both tips are designed for 20″ spacing and at 14mph/40psi yield rates as low as 3.2 GPA to as high as 23.3 GPA. These rates depend on the volume nozzle and the orifice used.
Ground Nozzle Accessories
Nozzle Adapters
Ready to Order?
CP Ground Nozzles are available through our authorized dealer network. Find a dealer near you for pricing, availability, and support.
